Specifications
- Wingspan: 36 ft. 2.5 in.
- Length: 24 ft. 9 in.
- Height: 7 ft. 2 in.
- Wing area: 183 sq. ft.
- Empty weight: 1288 Ibs
- MTOW: 2900 Ibs

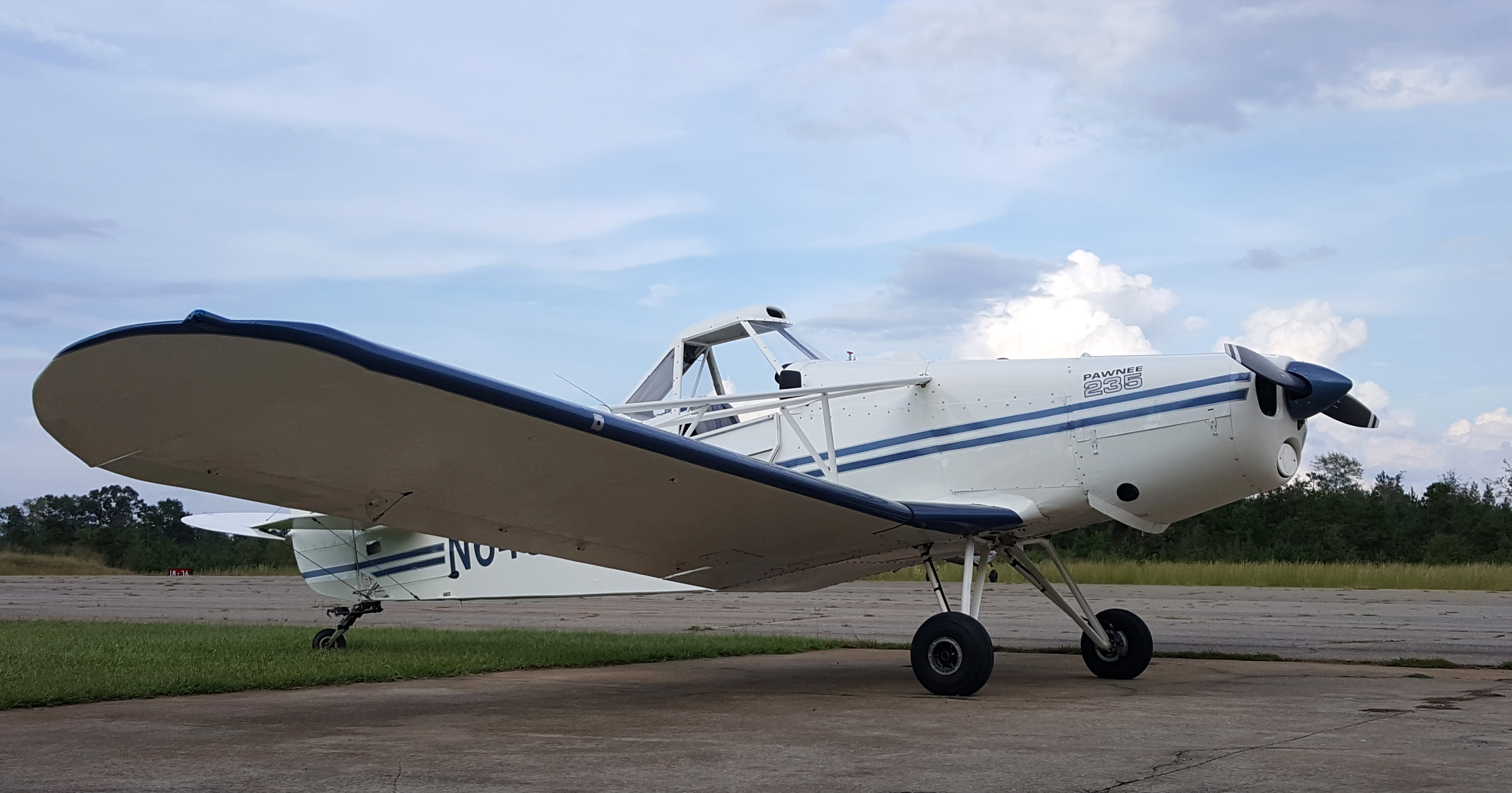

- Description: Low-wing braced monoplane.
The fuselage consists of a welded steel-tube structure covered with
fabric.

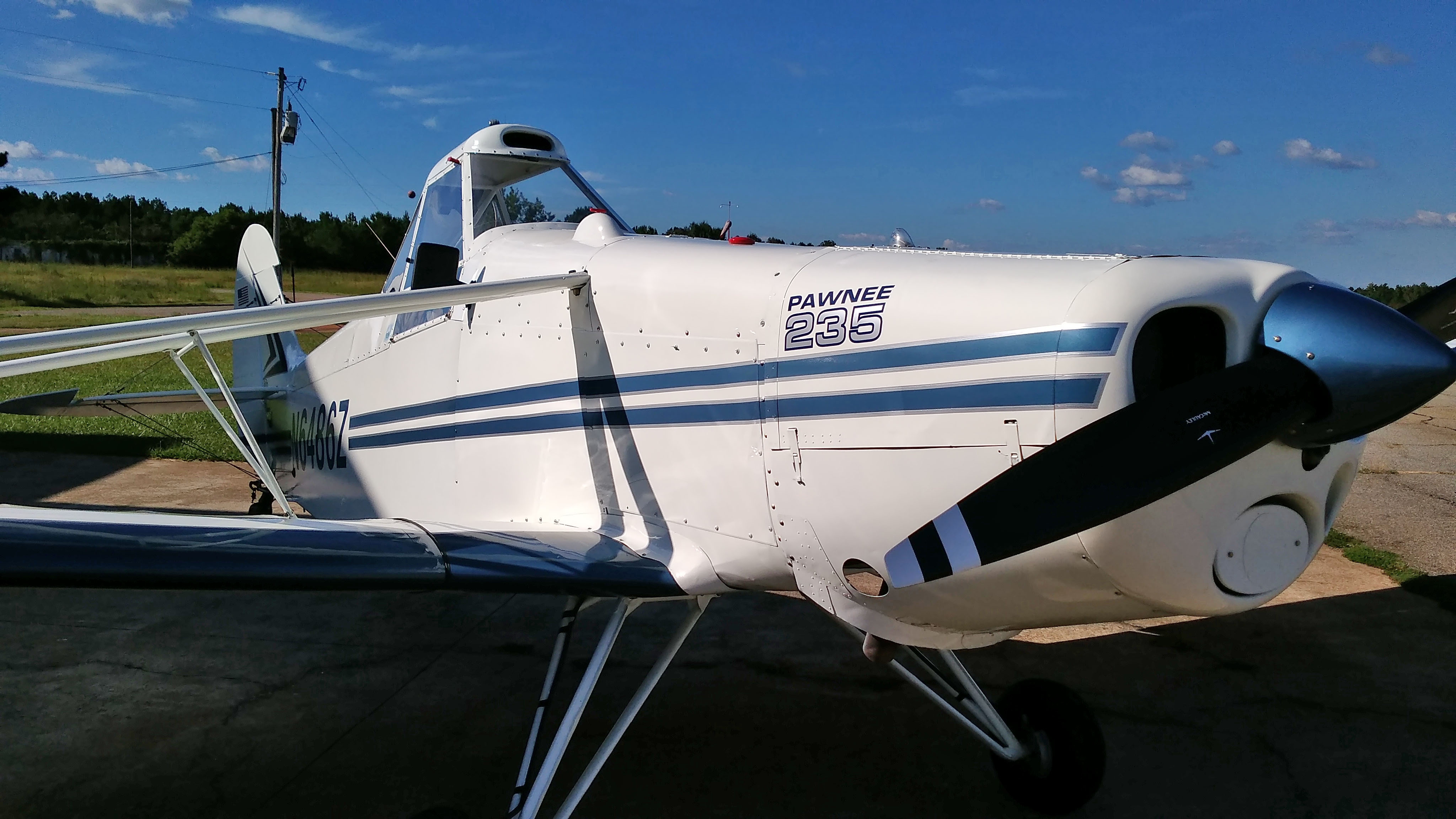

- Power plant: 235 H.P. Lycoming 0-540-B2B5
flat 6 cylinder piston engine
Performance
- Max. speed: 102 kt
- Cruise speed: 91 kt
- Rate of climb: 630 fpm
- Service ceiling 13000 ft

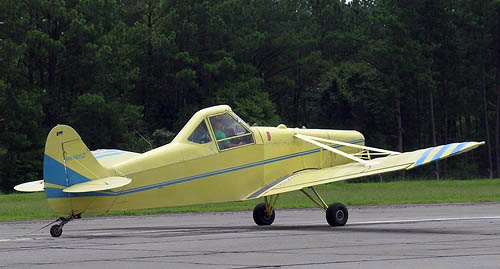

The Pawnee was designed specifically for
agricultural duties, and production deliveries commenced in August 1959.
The fuselage is so designed that, in a low-speed crash of a type usually
associated with crop spraying, the fuselage will fail progressively
from the front to reduce the deceleration of the cockpit. All heavy

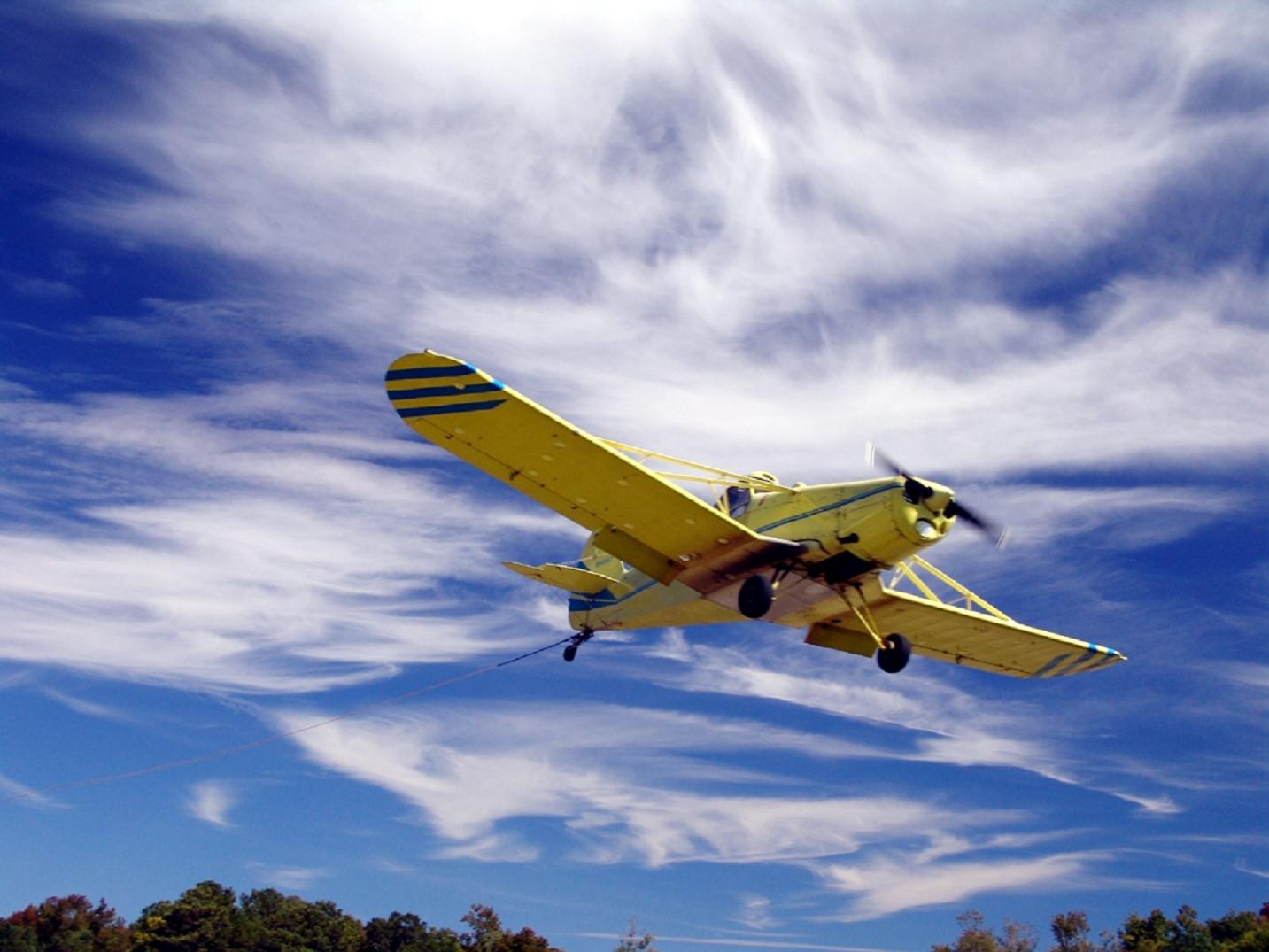

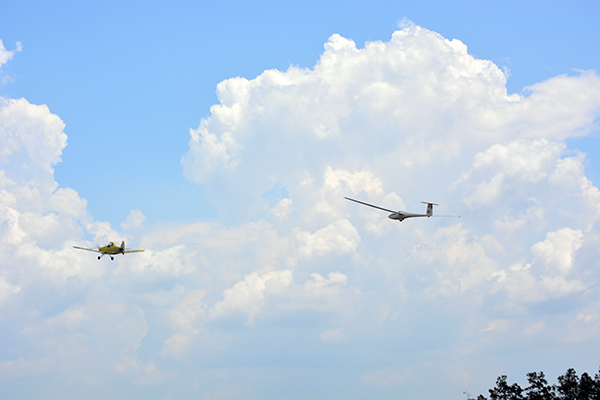

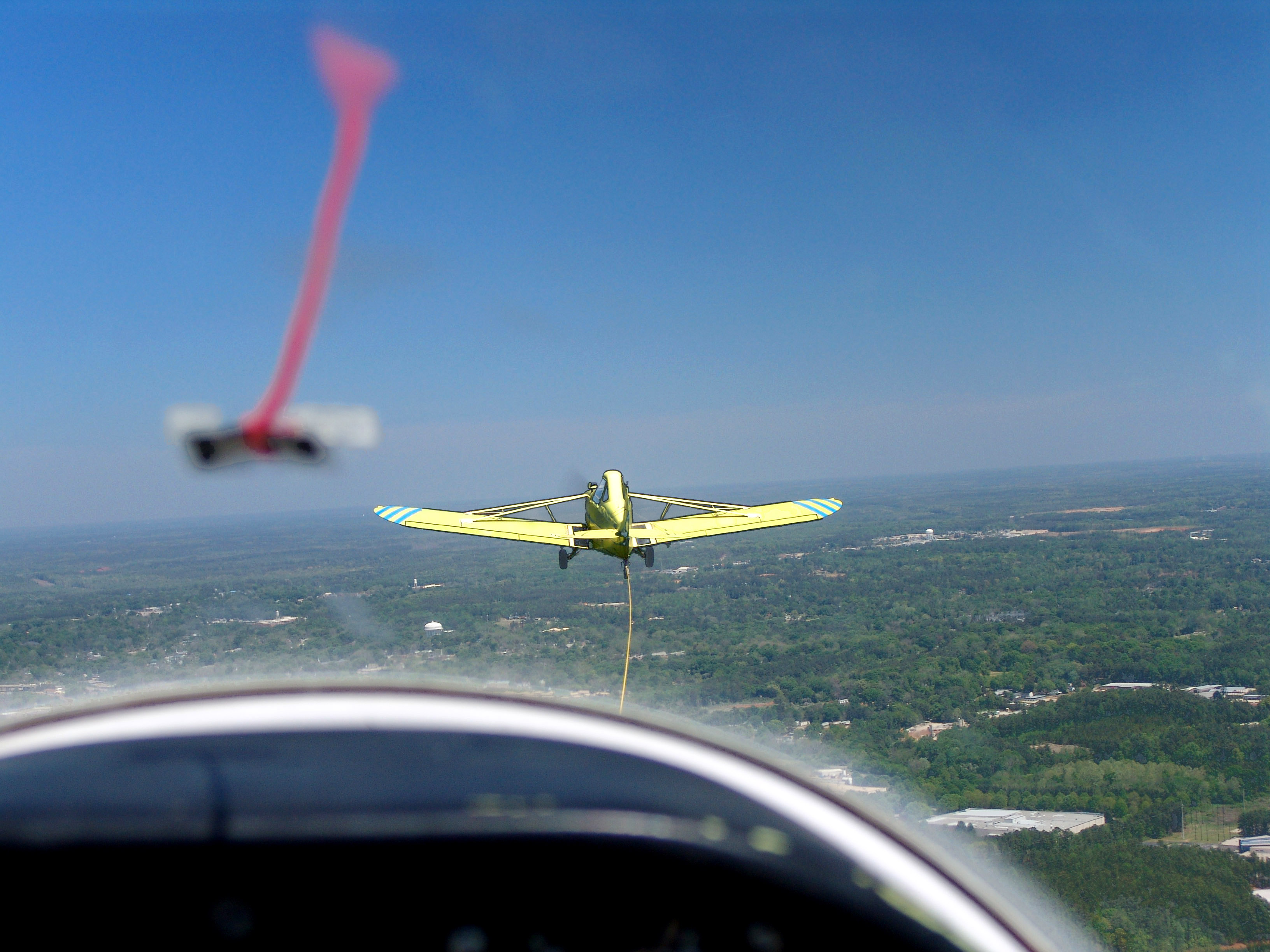

objects or loads are forward of the cockpit. The Pawnee is a popular
glider tug.
